T&P Valve: Essential Guide for Maintenance and Safety

Temperature and pressure (T&P) relief valves are essential safety components in water-heating systems. They are designed to prevent potential hazards due to excess pressure and high temperatures. As water heats up, it expands and increases the pressure within the water heater. T&P valves are engineered to open and release water, maintain a safe pressure level, and protect the equipment from critical failure.

T&P valves are commonly found on residential water heaters and typically constructed to relieve pressure at 150 psi and temperature at 210 degrees Fahrenheit. These valves adhere to strict safety standards established by ASME, ANSI, and CSA organizations. Proper installation, maintenance, and timely replacement of T&P valves are crucial to smoothly operating a water heater system and ensuring protection against malfunctions.

Key Takeaways

  • T&P valves are vital safety components in water heaters that regulate excess pressure and temperature.
  • Routine inspection and timely maintenance of T&P valves are critical for safeguarding against equipment failure and hazards.
  • Adhering to established industry standards ensures proper T&P valve functionality and overall safety in water-heating systems.

Understanding T&P Valves

Note: This post may contain affiliate links. This means that at no cost to you, we may receive a small commission for made purchases.

Temperature and pressure relief valves, commonly known as T&P valves, are essential safety devices present in water heaters and boilers. These valves serve a dual purpose by protecting the system from excessive temperature and pressure, ensuring safety and proper functioning.

A T&P valve is designed to respond to abnormal and potentially dangerous conditions. When the pressure in the water heater exceeds the valve’s pressure setpoint, typically 150 psi, the valve opens to release the excess pressure and prevent further increase 1. The same goes for the temperature: if the temperature surpasses the valve’s setpoint, usually 210 degrees Fahrenheit, the valve will open to discharge the water, thus avoiding potential hazards 2.

Thermal expansion plays a significant role in the functioning of T&P valves. When water is heated, it expands, causing pressure to rise within the system. If the pressure becomes too high, the T&P valve activates to release the excess pressure and safeguard the water heater 3.

It is essential to maintain and inspect T&P valves regularly to ensure their proper functioning and avoid safety issues. Over time, the valves’ components may become corroded or damaged, leading to a faulty valve. In some cases, a malfunctioning T&P valve may continuously release small amounts of water, while in more severe cases, a blocked valve can lead to dangerous pressure buildup, resulting in potential explosions 4.

In summary, T&P valves are vital safety devices designed to protect water heaters and boilers from excessive temperature and pressure. Regular inspection and maintenance are crucial to ensure their proper functioning and avoid severe consequences.

Functions of a T&P Relief Valve

A T&P (temperature and pressure) relief valve is an essential component of a water heater system, providing safety functions to prevent damages and accidents. This automatic valve is mandated by all plumbing codes and primarily serves to maintain a safe balance between temperature and pressure within the water heater [1].

The primary function of a T&P relief valve is to release water from the water heater if either the temperature or the pressure inside the tank exceeds safe levels [2]. This action effectively prevents the water heater from exploding or rupturing due to excessive pressure buildup. Consequently, the T&P relief valve acts as the last line of defense for pressurized equipment, ultimately protecting it from catastrophic failure [3].

As part of its regular functioning, a T&P relief valve responds to different triggers. Most T&P valves are rated at 150 psi and 210°F, but their capacity ratings can vary significantly [4]. When the temperature or pressure inside the water heater tank reaches these preset thresholds, the valve automatically opens, releasing the excess water to maintain a safe and optimal environment in the system.

In summary, T&P relief valves are crucial safety components in water heater systems, designed to automatically maintain a balance between temperature and pressure within the tank. By promptly responding to triggers like excessive temperature or pressure, these valves help avert the risk of water heater explosion, rupturing, and other potential damages [5].

Installation and Replacement

The installation and replacement process for a T&P valve is crucial for maintaining safety and efficiency in your water heating system. It is crucial that only a knowledgeable professional, such as a plumber, undertake this task to ensure the accuracy and effectiveness of the installation.

The steps to replace the T&P valve include turning off the water heater’s power supply, whether it be gas or electricity, and draining some water from the tank. A small amount of water must be drained if the valve is mounted at the top, and around 10 gallons if the valve is on the side source.

Once the power is off and the water level is below the valve, the plumber can remove the old temperature and pressure relief valve. Teflon tape must be applied to the threaded portion of the new valve, as this helps to create a watertight seal with the water heater tank. The Teflon tape should be wrapped in a clockwise direction around the valve threads to ensure a proper fit.

Next, the plumber will attach the new T&P valve to the water heater tank by screwing it in place. It is necessary to tighten the valve securely to prevent leaks and ensure correct installation. At this stage, the plumber may also inspect and replace the discharge tube that connects the T&P valve to the floor drain for safe and efficient operation.

Ultimately, the installation and replacement of a T&P valve must be done with care and precision. By employing a qualified plumber and following appropriate procedures, you can ensure that your water heater remains in optimal working condition, safeguarding your home and family from potential hazards associated with water heating systems.

Signs of T&P Valve Issues

The T&P valve, short for temperature and pressure relief valve, plays a crucial role in maintaining the safety of your water heater. If you suspect that there might be an issue with your T&P valve, it is essential to address it promptly. There are a few signs that can indicate potential T&P valve problems, such as leaking, excess pressure, and discharging water.

Leaking: One common issue with T&P valves is leaking, which can be identified by water dripping around the valve or the discharge pipe. Leaks can occur due to a faulty valve or high water pressure in the water heater. It is essential to address leaks promptly to prevent water damage and ensure your safety. To fix a leaking T&P valve, you may need to tighten the connections, replace the valve, or consult a plumbing professional to identify the underlying issue source.

Excess Pressure: The T&P valve is designed to release excess pressure from the water heater when necessary. If your valve continuously discharges water, it may signal that the system is experiencing too much pressure. High pressure can be caused by various factors, such as a malfunctioning pressure regulator, a closed water supply valve, or even improper thermostat settings source. A qualified plumber can help diagnose the cause of the excess pressure and recommend the appropriate course of action.

Discharging Water: Occasional water discharge from the T&P valve is normal, but if you notice frequent or continuous water discharge, it may indicate an issue with the valve or the water heater itself. Reasons for discharging water can include thermal expansion, increased system pressure, or low-temperature relief source. It is crucial to have a professional assess the situation and determine the proper solution to avoid potential hazards.

Being aware of these signs can help you detect T&P valve issues early, ensuring the safety and proper functioning of your water heater. If you notice any of these signs, it is crucial to consult a plumbing professional to diagnose and fix the problem before it escalates.

Impact of Temperature and Pressure

Temperature and pressure play crucial roles in the functioning of a T&P valve. The valve is designed to open when the water temperature reaches around 210°F (99°C) or if the system pressure exceeds 150 psi. These settings are particularly important, as they help prevent potential damage to the water heater and the plumbing system.

Thermal Expansion is a noteworthy factor to consider when discussing temperature and pressure. When water is heated, it naturally expands, leading to an increase in both the volume and pressure inside the water tank. This expansion can cause stress on the water heater, the piping, and other components in the system. The T&P valve acts as a safeguard by discharging excess water when pressure or temperature reaches predefined limits.

Regular testing of the T&P valve is essential to ensure it functions correctly and continuously protects the water heater from high pressures and temperatures. It is crucial to keep the temperature settings within a safe range to minimize the risk of leaks or other issues with the valve.

In summary, striking a balance between temperature and pressure in a water heater system is vital for the system’s safety and longevity. The T&P valve serves as a reliable mechanism to prevent potentially hazardous situations by discharging excess water when necessary, ensuring the smooth operation of the entire system. Regular maintenance and testing of the T&P valve are essential practices that uphold the safety and efficiency of the water heater system.

Specifics for Residential Water Heaters

Residential water heaters, whether gas or electric, play a crucial role in providing hot water for various household activities, such as cooking, showering, and cleaning. To ensure the safe operation of a water heater, it is essential to understand the role of the temperature and pressure relief valve (T&P valve).

The T&P valve is a critical safety component of the water heater, specifically designed to relieve excess temperature and pressure. It is factory-set to open when the water temperature reaches around 210°F (99°C) or if the pressure exceeds 150 psi (pounds per square inch). These settings are well above normal operating conditions for a residential water heater.

Whether you have an electric water heater or a gas-fired one, the T&P valve ensures that the storage tank does not experience a dangerous excess of temperature or pressure. It is essential to test the T&P valve periodically to ensure it functions correctly, as this can help prevent catastrophic events, such as explosions or leaks.

There are a few key points to keep in mind when it comes to residential water heaters and their T&P valves:

The T&P valve might need to be replaced if it does not open when tested or if it is leaking after being activated. If there is an issue with your T&P valve or if you are unsure how to test it properly, consult a professional plumber to ensure your home’s hot water system is safe and functioning correctly.

Safety Measures and Precautions

When dealing with T&P valves, it is crucial to follow safety measures and precautions to ensure the optimal functionality of the device and prevent accidents. T&P valves are designed to relieve pressure at 150 psi and temperature at 210 degrees F, which helps protect water heaters from excess pressures and temperatures that may lead to scalding or injury.

In order to maintain the safety of your water heater system, consider the following points:

  • Regular Inspection: Check the T&P valve periodically for any signs of wear, corrosion, or leakage. This will help you identify potential issues before they escalate and become hazards.
  • Proper Installation: Ensure that the T&P valve is installed correctly, following the manufacturer’s guidelines. This can help prevent high water temperatures that may cause flashing of hot steam at faucets, leading to scalding or injury.
  • Thermal Expansion Control: Keep a close eye on the water heater system for signs of thermal expansion. Discharge from the T&P valve can indicate an abnormal condition, and addressing the issue promptly can help maintain overall safety.
  • Pressure Margin: It is recommended to maintain a 5 psig margin between the relief pressure and the system operating pressure. This ensures a tight shut off and prevents unwanted valve opening.
  • Valve Sealing: Always seal the valve against tampering to avoid unintended adjustments or disassembly. Sealing wire and a lead seal are commonly used for this purpose.

By following these safety measures and precautions, you can effectively protect your water heater system from potential damage and decrease the risk of scalding or injury. Remember that a well-maintained T&P valve plays a vital role in ensuring the safety and efficiency of your water heater system.

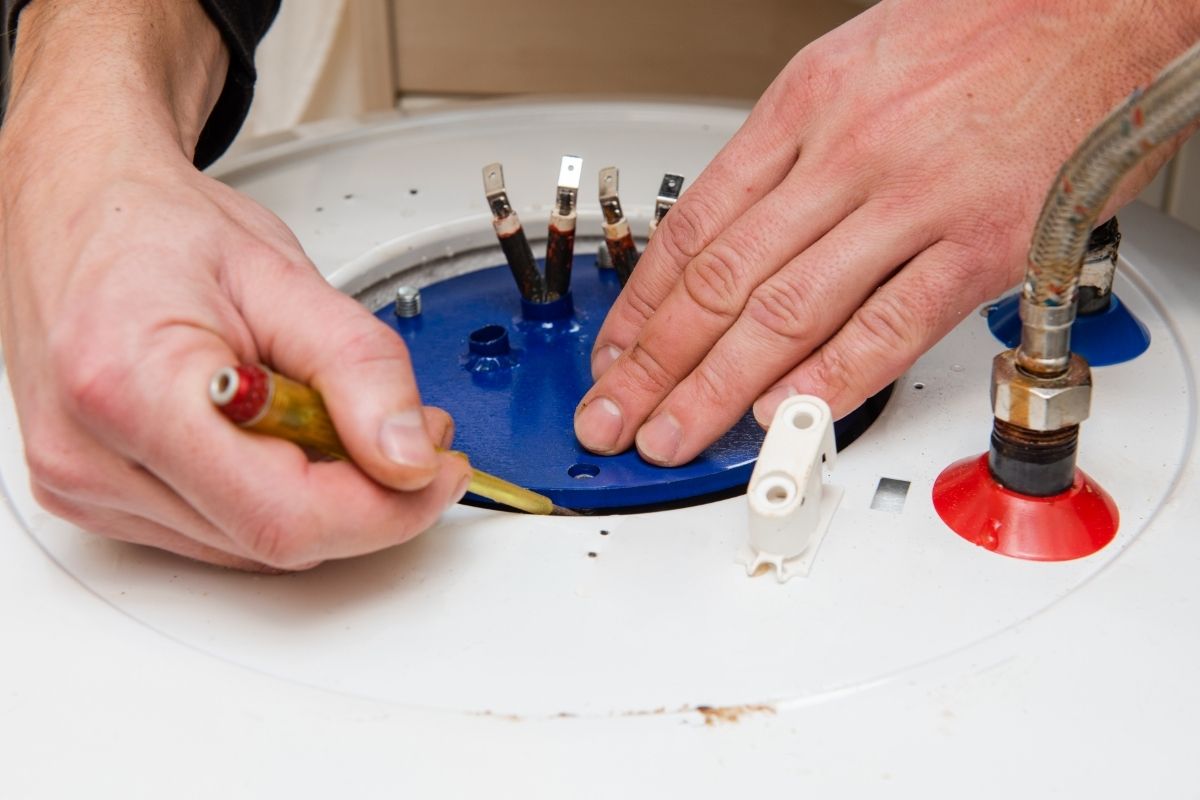

installing wqater heater

Professional Help

Hiring a professional plumbing contractor can ensure the proper installation and maintenance of a T&P valve in your water heater system. These certified professionals have the necessary experience and expertise to correctly diagnose and address any issues related to T&P valves.

A reliable plumbing contractor will be well-versed in the importance of the temperature and pressure relief valve and can help prevent potential hazards that might arise from faulty or malfunctioning T&P valves. They can also preserve the longevity of your water heater by performing regular maintenance checks.

When choosing the right plumbing contractor, it is essential to consider their qualifications, years of experience, and trustworthy reputation in the business. Additionally, you can ask for recommendations from friends, family, or online reviews to ensure that you are hiring a knowledgeable and dependable professional.

In case of a malfunctioning or leaking T&P valve, a skilled plumbing contractor can swiftly identify the root cause and implement the necessary repairs or replacements. They can also provide guidance on steps to maintain your T&P valve and reduce the likelihood of future issues.

In conclusion, selecting an experienced plumbing contractor to handle T&P valve installation and maintenance is an investment in the safety and efficiency of your water heater system.

Standards for T&P Valves

Temperature and Pressure (T&P) relief valves are crucial components in residential water heaters, providing safety and protection against excess pressure and temperature. Several organizations establish standards and guidelines to ensure the proper functioning and quality of these valves. Key organizations include the American National Standards Institute (ANSI), the American Society of Mechanical Engineers (ASME), and the Canadian Standards Association (CSA), which operates AGA (American Gas Association) standards.

T&P valves, as per the guidelines, are designed to relieve pressure at 150 psi and temperature at 210 degrees Fahrenheit. These values are specifically outlined by the ASME, ANSI, and CSA (AGA) standards. Compliance with these standards ensures the protection of water heaters from damage and possible failure due to excessive temperatures or pressures.

To maintain the quality and performance of T&P valves, several tests and certifications are required by manufacturers. One common test procedure for T&P valves is found in the Temperature / Pressure Relief Valve Test Procedures, which is used to verify the proper functioning of the valves in line with industry standards.

In conclusion, adhering to the established standards and guidelines set by ANSI, ASME, and CSA (AGA) is an important aspect of ensuring the safety and reliability of T&P valves in water heater systems. By following these guidelines, manufacturers not only meet the code requirements but also provide end-users with high-quality, reliable and safe operation of their water heater systems.

Popular T&P Valve Brands

One reputable brand in the T&P valve industry is Cash Acme. They have been a trusted source of plumbing solutions for over a century. Cash Acme specializes in producing Temperature & Pressure (T&P) Relief Valves for water heaters and hot water storage tanks. Before leaving the factory, each pressure relief valve is tested to ensure top plumbing performance, quality, and efficiency.

Another well-known brand in the industry is Watts. Their T&P relief valves are designed to protect pressurized equipment from excess pressure and catastrophic failure. T&P valves for residential water heaters are typically designed to relieve pressure at 150 psi and temperature at 210 degrees F. Watts’ valves are approved by ASME, ANSI, and CSA (AGA) standards, ensuring their quality and reliability.

McMaster-Carr is also a go-to source for T&P valves. Their T & P valves ensure that they open when the water temperature reaches 210° F or at the set pressure. These valves are commonly used with water heaters and storage tanks. To facilitate remote discharge, valves from McMaster-Carr have a threaded relief port that allows for attaching a drain line.

It’s essential to select the correct T&P valve for your specific application. When choosing a valve, consider the code requirements and standards that apply in your area. For example, model codes require T&P relief valves to be set no higher than 150 psi, even if the water heater has a higher MAWP (Maximum Allowable Working Pressure). The relieving capacity of the valve must also be equal to or greater than the Btu/hr. of the vessel.

In conclusion, Cash Acme, Watts, and McMaster-Carr are popular T&P valve brands that provide reliable, efficient, and tested products to meet the needs of various applications. By considering code requirements and product specifications, you can select the best T&P valve for your water heater or storage tank.

The Discharge Line and Pipe

The discharge line and pipe play a crucial role in maintaining the safety of a water heater system. They are connected to the temperature and pressure relief (T&P) valve and are responsible for safely routing hot water and steam released from the valve to a proper discharge location.

A typical discharge pipe installation involves a pipe made of metal or plastic materials and runs down the length of the water heater tank. It is essential to ensure the pipe is installed correctly to avoid any potential hazards. For instance, the discharge pipe should not flow upwards, as it can lead to the improper release of hot water or steam.

Regarding the code requirements of discharge pipes, there are a few critical elements to consider:

  • The discharge pipe cannot be directly connected to the home’s plumbing drainage system. Instead, an air gap located in the same room as the water heater can be used to connect to the drainage system, preventing any backflow from the drain into the discharge piping.
  • The pipe should not be smaller in diameter than the outlet pipe of the T&P valve.
  • It must end 6 inches above the floor or be routed to a suitable drain to prevent scalding or damage.

Additionally, it is crucial to regularly inspect and maintain the discharge piping system. Over time, mineral deposits, corrosion, and other elements can affect the pipes and cause them to malfunction. Regular inspections can help detect potential problems and ensure the system is functioning safely and efficiently.

In conclusion, the discharge line and pipe are integral components of a water heater’s safety system. Proper installation, adherence to code requirements, and regular maintenance are essential to ensure the safe and efficient operation of the T&P valve discharge system.

Can you run out of hot water with a tankless water heater?

Miscellaneous Information

In the world of water heaters, the T&P valve plays a crucial role in maintaining safety and efficiency. This temperature and pressure relief valve is responsible for releasing excess pressure and temperature from the water heater, preventing dangerous situations like explosions or rupturing of the tank. These valves typically function at a maximum pressure of 150 psi and a maximum temperature of 210 degrees F.

Testing T&P valves: It is essential to routinely test the T&P valve to ensure its proper functioning. To conduct a test, place a bucket under the discharge pipe and gently lift the lever on the valve, allowing water to flow into the bucket. If the valve does not release any water or is leaking, it may be time to replace it. Always turn the water heater’s power off before conducting any tests.

Discharge pipe: The T&P valve usually has a discharge pipe connected to its outlet, directing the released water safely into a drain or container. It is crucial to ensure that this pipe is correctly installed and free of any obstructions or leaks. The discharge should be directed in a way that prevents water damage or injury. Do not use reducing couplings or place caps on the end of the pipe, as doing so may cause a build-up of pressure.

Replacing the T&P valve: In cases where the valve is not functioning properly, it must be replaced. Ensure the water heater’s power is off and drained before attempting a replacement. Use a wrench to unscrew the old valve, apply Teflon tape to the new valve threads, and tighten it into position. Turn the power back on and check for leaks to confirm successful installation.

Power considerations: While the T&P valve relies on water pressure and temperature to function, it is essential to remember that the water heater is connected to the electrical or gas supply of the house. Always consider safety when working on your water heater and disconnect the power supply before conducting any maintenance or repair tasks. Additionally, having a professional inspect and maintain your water heater regularly can ensure it operates efficiently and safely.

By being aware of these miscellaneous aspects of the T&P valve, homeowners can guarantee proper maintenance and operation of their water heaters, ensuring safety and efficiency within their homes.

Caveats for a T&P Valve

A T&P (temperature and pressure) relief valve is an essential safety component in water heaters. It prevents excessive pressure and temperature build-up and ensures proper functioning of the system. However, there are certain caveats that users should be aware of.

Firstly, it is crucial to regularly inspect and maintain the T&P valve to ensure its proper functioning. Over time, T&P valves may become corroded, damaged, or clogged, preventing them from operating effectively. It is essential to perform routine checks and replace the valve if necessary.

Secondly, it’s important to consider that the T&P valve operates independently from other safety features, such as pressure relief tanks. This means that if your water heater was installed after 2018, you might need to have a pressure relief tank, depending on your state’s requirements (). Whether you have one or not, it’s vital to understand that the T&P valve still requires regular maintenance to ensure your water heater’s safety.

Another potential issue to be cautious about is the thermal expansion within the water heater (). When water is heated, it expands, which can lead to increased pressure within the system. Properly managing the thermal expansion is necessary to prevent undue wear and tear on both the T&P valve and the water heater itself.

Lastly, the performance of a T&P valve can be affected by environmental factors such as the presence of cookies on a user’s system while accessing a website that provides information about T&P valves. These cookies can track user behavior, affecting the efficiency and security of the website. It’s essential to delete cookies when necessary and maintain a secure browsing experience.

In conclusion, the proper functioning of a T&P valve is vital to the safety and efficiency of a water heater. By being aware of these caveats and adopting a routine maintenance plan, users can ensure their water heaters remain in optimal working condition.

3 Main Types Of Plumbing Cleanouts You Should Know

Frequently Asked Questions

What is the correct pressure setting for a T&P valve?

The correct pressure setting for a T&P (Temperature and Pressure) valve is usually specified by the water heater manufacturer and can be found in the water heater’s documentation. Typically, the pressure setting ranges from 100 to 150 PSI. It is essential to follow the manufacturer’s recommendation to ensure the safe operation of the water heater.

How often should a T&P valve be replaced?

T&P valves should be inspected regularly for proper operation and signs of wear or damage. It is generally recommended to replace the valve every 3-5 years or as recommended by the manufacturer. If there are signs of leakage or corrosion, the valve should be replaced immediately. Regular testing and maintenance will help to ensure the valve’s longevity and safety.

Why might a pressure relief valve drip on a water heater?

A pressure relief valve might drip on a water heater due to several reasons. These can include high water pressure, thermal expansion, a faulty valve, or sediment buildup. Regularly inspecting and maintaining the valve will help to identify and rectify any issues early on. If the dripping persists, it may be necessary to replace the T&P valve or consult with a plumber.

Is it normal for a T&P valve to be hot to touch?

Yes, it is normal for a T&P valve to be hot to touch. The valve is connected to the water heater and operates under the same temperature and pressure conditions as the water inside the tank. However, if the valve is too hot to touch, it may indicate a malfunction and should be inspected or replaced.

What is the proper discharge pipe installation for a T&P valve?

The discharge pipe for a T&P valve should be installed according to the guidelines specified by the manufacturer. The pipe should be connected to the valve and directed downward, ensuring that it is not obstructed or kinked. The discharge pipe should also terminate at least 6 inches above the floor and should not have any threads or fittings that could prevent water from flowing freely in case the valve activates.

How do I determine the correct probe length for a T&P valve?

To determine the correct probe length for a T&P valve, refer to the water heater’s labeling or documentation for the manufacturer’s recommendation. The probe length must be adequate to reach the hottest part of the tank’s water, which is typically about 2 inches from the tank’s bottom. Selecting the appropriate probe length ensures proper temperature sensing and helps maintain the safety of the water heater system.
