Hydronic heating systems have become increasingly popular due to their energy efficiency and ability to provide both radiant and convective heat. Utilizing hot water or steam as the heat-transfer medium, these systems efficiently distribute heat throughout a building. A heat source, such as a boiler or heat pump, is used to heat the water, which is then circulated through a network of pipes and radiators to warm the space.
There are several different types of hydronic heating systems available, including baseboard, panel radiators, and underfloor radiant heating systems. Each type offers specific advantages and challenges, while the overall benefits of hydronic heating remain consistent: improved comfort, energy efficiency, and potential health benefits as a result of reduced airborne allergens. To ensure optimum performance, it is crucial to choose the right system for a given space and understand the necessary components and installation requirements.
Key Takeaways
- Hydronic heating systems use hot water or steam to provide energy-efficient and comfortable heating.
- Various types of hydronic systems cater to different needs, such as baseboard, panel radiators, and underfloor radiant options.
- Selecting the appropriate system and understanding its components and installation process are essential for optimal performance.
Understanding Hydronic Heating
Hydronic heating is a method of providing space heating by circulating a heated liquid, typically water, through a series of pipes and radiators or underfloor radiant heating tubes. The process involves heating the liquid in a boiler, which is then pumped to distribute heat throughout a building. Some systems also use oil as the heated liquid, but water is more common due to its greater thermal efficiency and capacity.
There are various types of hydronic radiant heating systems available. While the basic components of a boiler, liquid, plumbing manifold, tubing, and heat exchanger remain essential for all systems, their configurations can differ. For instance, tankless water heaters and radiant floors are both options for designing a hydronic radiant heating system. Some hydronic systems are even capable of providing both heating and cooling with either a 2-pipe or 4-pipe distribution configuration.
One of the key advantages of hydronic heating over traditional forced-air systems is that it can more effectively maintain optimum temperature and humidity control while also eliminating issues related to the spread of allergens and debris. Hydronic heating systems can be more efficient, durable, and cost-effective when compared to hot-air heating systems.
In summary, hydronic heating systems utilize heated liquid, such as water, to provide a comfortable and efficient space heating method. With various system configurations available, including options for radiant heating and even cooling, hydronic heating offers a versatile and energy-efficient solution for both residential and commercial buildings.
Components of Hydronic Heating Systems
Boilers and Heat Exchangers
Hydronic heating systems rely on a boiler to heat the liquid, which can be fueled by various sources such as natural gas or oil boilers, heat pumps, wood furnaces, and solar heaters. The most efficient type is the condensing boiler, which uses a heat exchanger to extract additional heat from the exhaust gases. The heated liquid then circulates through the system to bring warmth to the living spaces.

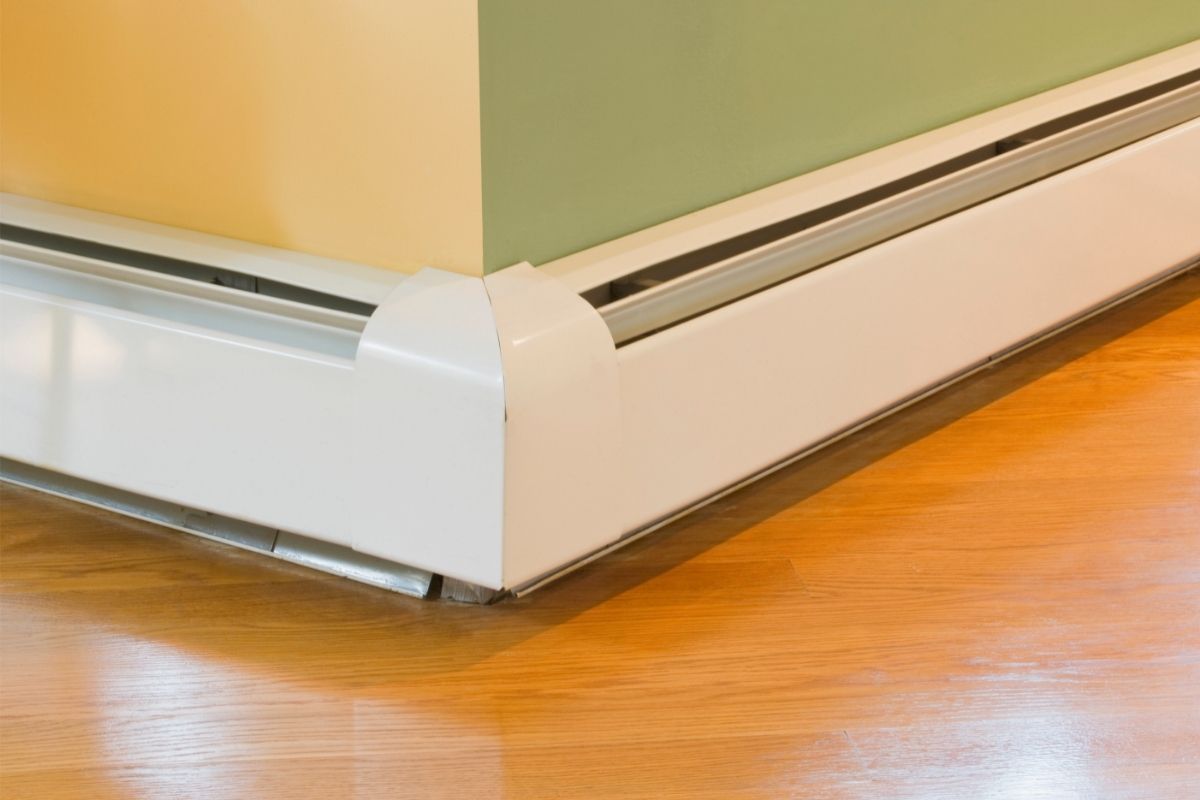

Radiators and Baseboards
To distribute the heat throughout the rooms, hydronic systems use different types of emitters, including standalone radiators, baseboard radiators, or coils installed underneath the floor. Both radiators and baseboard heaters serve to transfer heat from the hot water to the surrounding air. Radiators tend to provide more focused heat, while baseboard heaters distribute heat evenly along walls.
Additional Components
Several components work together to ensure the effective operation of a hydronic heating system. Some of the key elements include:
- Control Valves: These devices manage the flow of hot water to different zones of the house for optimal temperature control.
- Zone Valves: As a part of the hydronic system’s zoning, zone valves control the flow of heated liquid to specific areas, allowing for customizable heating settings.
- Circulator Pumps: These pumps ensure the continuous flow of the heated liquid through the system’s tubing and back to the boiler for reheating.
- Plumbing Manifold: The plumbing manifold is a central hub for distributing the heated liquid to various tubes that run throughout the house.
- Expansion Tanks: As the liquid in the system heats up, it expands. Expansion tanks are present to accommodate this expansion, preventing pressure buildup and damage to the system.
By understanding the components and their roles in the operation of hydronic heating systems, homeowners can make informed decisions regarding the selection, installation, and maintenance of an efficient and comfortable heating system.
Comparison with Other Heating Systems
In this section, we will compare hydronic heating systems with other common heating systems such as forced air systems, heat pumps, and air conditioning systems.
Hydronic vs. Forced Air Systems
Hydronic heating systems (also known as radiant or hot water heating) use a boiler to heat water and then distribute it throughout the house through a network of pipes, radiators, or baseboard heaters. These systems are known to be quieter, more energy-efficient, and improve indoor air quality compared to forced air systems (source).
On the other hand, forced air systems are the most popular type of heating system in the U.S., as they work with an air-conditioning unit to create a comprehensive heating, ventilation, and air conditioning (HVAC) system (source). These systems use a furnace to heat the air, which is then distributed throughout the house using ductwork. Forced air systems can provide both heating and cooling in one unit, whereas hydronic systems are primarily focused on heating.
Hydronic vs. Heat Pumps
Heat pumps are another common HVAC solution. These systems work by moving heat from one location to another, rather than generating heat like a hydronic system’s boiler (source). This makes heat pumps highly energy-efficient and makes them suitable for both heating and cooling.
While hydronic systems are more efficient for radiant heating, as they provide consistent warmth and comfort, heat pumps offer versatility and can heat or cool a space more quickly. Additionally, heat pumps do not require any ductwork or piped water, making them a less complex option in comparison to hydronic systems.
Hydronic vs. Air Conditioning
Air conditioning systems are primarily focused on cooling indoor air and rely on ductwork to distribute cool air throughout the house. These systems are unable to provide heating, thus requiring a separate heating system like a furnace or a hydronic system (source).
In contrast, hydronic heating systems only focus on heating the house and do not offer any cooling capabilities. However, hydronic systems do provide more consistent and even heating compared to air conditioning systems, which can sometimes result in uneven air temperatures and inferior indoor air quality.
Installation of Hydronic Heating
Setting Up the Boilers
The first step in installing a hydronic heating system is setting up the boilers. The boiler is the main component that heats the liquid, which, in most cases, is water. It’s essential to choose the right type of boiler for your system, considering factors such as efficiency, size, and fuel type. When selecting a location for the boiler, make sure it is easily accessible for maintenance and has proper ventilation.
Next, it’s critical to size the boiler correctly for the heating demands of your home. Proper sizing ensures optimal performance and energy efficiency while avoiding unnecessary wear on the components due to short cycling. A professional HVAC installer can help you determine the right size for your specific needs.
Installing Radiators and Baseboards
The hydronic heating system distributes heat through radiators, baseboard heaters, or in-floor tubing. When installing radiators and baseboards, it’s essential to place them in multiple heating zones throughout your home to achieve consistent temperatures. Each zone should have its dedicated control valves, known as zone valves, to regulate the flow of heated liquid within that area.
Carefully consider the positioning of radiators and baseboards in each room to ensure adequate heat distribution. Generally, placing them along exterior walls and beneath windows helps maximize efficiency by counteracting heat loss from windows and doors.
Positioning of Additional Components
In a hydronic heating system, the heated liquid travels through a series of pipes, which are connected to a plumbing manifold. The manifold is responsible for distributing the hot liquid to the various radiators or baseboards in your home.
In addition to the manifold, other essential components of a hydronic system include circulator pumps and an expansion tank. Circulator pumps move the hot liquid throughout the system, maintaining the desired temperature in each zone. An expansion tank, on the other hand, is a safety device that accommodates the expansion and contraction of water as it heats and cools.
When positioning these components, ensure that they are easily accessible for maintenance and properly connected to the main system. Avoid installing them in tight spaces or locations that can be challenging to reach.
The installation cost of a hydronic heating system varies based on multiple factors, including the size of your home, the type of system, and labor costs in your area. While it might be more expensive initially than other heating options, a well-installed hydronic system can provide long-term energy savings and increased comfort.
Advantages of Hydronic Heating
Hydronic heating systems offer numerous benefits that make them an attractive option for homeowners. One advantage is their quiet operation. Unlike traditional forced-air systems, which can create a lot of noise due to their reliance on air ducts and fans, hydronic systems work by circulating hot water or steam through pipes, radiators, or underfloor radiant heating tubes. This process eliminates the need for noisy air handlers, providing homeowners with a much quieter and more peaceful living environment1.
Another significant advantage of hydronic heating systems is their ability to maintain consistent temperatures throughout a home. They rely on natural convection and radiation to distribute warmth evenly2, eliminating the cold drafts and hot spots that can occur with traditional air-based systems. This feature not only enhances the overall comfort of a home but can also lead to lower energy bills as homeowners may not feel the need to constantly adjust their thermostat settings.
Energy efficiency is another key attribute of hydronic heating systems3. They require less energy to circulate water compared to blowing hot air, making them more energy-efficient than air-based systems. Additionally, hydronic systems can feel warmer at lower thermostat settings, enabling homeowners to potentially save on energy costs4.
Along with providing warmth without the noise, hydronic heating systems also offer the luxury of warm floors. Since the hot water or steam is supplied directly under the floor, homeowners can enjoy the pleasure of walking on warm floors during chilly winter days5.
Furthermore, hydronic heating systems contribute to improved indoor air quality by eliminating the need for air to be blown throughout a home. This prevents the circulation of dust and allergens, creating a cleaner and healthier living environment6. Individuals with allergies or respiratory issues may find this feature particularly beneficial.
Finally, hydronic systems can also help maintain humidity levels in a home. Unlike forced-air systems, which can remove moisture from the air, hydronic systems do not have this effect, leading to a more comfortable and healthier living environment.
Challenges and Solutions in Hydronic Heating
Handling Repairs
Hydronic heating systems are known for their even heat distribution and energy efficiency, which makes them a popular choice for many building owners. However, like any other system, they can face some challenges, including the need for repairs occasionally. One common issue can be the formation of sludge inside the heating panels, which can affect the system’s performance and increase running costs. To tackle this problem, it is recommended to have a power flushing carried out, which effectively removes the sludge and restores the system’s efficiency.
Another challenge in handling repairs is the potentially high cost. It is essential to engage experienced professionals who can diagnose and address the problem efficiently to minimize repair costs and allow the system to function optimally again.
Maintaining the System
Regular maintenance is vital to ensure the longevity and efficiency of hydronic heating systems. One critical aspect of maintenance is monitoring the water’s pH level, as an incorrect level can lead to issues like sludge formation or corrosion.
To maintain an energy-efficient hydronic system, it is also important to consider lowering the water temperature. Decreasing the temperature helps reduce energy consumption and contributes to decarbonization and electrification efforts. This adjustment not only conserves energy but also lowers the overall cost of operating the system.
In conclusion, addressing the challenges of hydronic heating systems – such as repairs and maintenance – can help ensure optimal performance and maintain their energy-efficient qualities. By implementing regular check-ups and making necessary adjustments, building owners can reap the benefits of this heating solution and effectively maintain a comfortable, cost-efficient indoor environment.
Understanding Heat Distribution
Hydronic heating systems are an efficient and versatile means of temperature control in residential and commercial settings. These systems make use of a liquid medium, typically water or a glycol mixture, to transfer heat throughout a building. There are three main methods of heat distribution in hydronic systems, each with its unique properties: conduction, convection, and radiation.
Conduction refers to the direct transfer of heat between two materials in contact with each other. In a hydronic system, heat is conducted from the liquid medium to the tubing that transports it. For example, in radiant floor heating, the tubing embedded in the floor conducts heat from the hot liquid to the floor material, effectively warming the surface beneath your feet.
Convection is the process of transferring heat through the movement of fluid or gas. In hydronic systems, convection occurs when the liquid medium, such as water or glycol mixture, is heated and begins to rise as it becomes less dense. As the heated medium circulates, it distributes heat throughout the building. This method is most commonly applied in baseboard and finned-tube units.
Radiation is the emission and transmission of energy as electromagnetic waves. In the context of hydronic heating, radiant heat is emitted by a warm surface, like radiant floors or radiators, and travels through the air to warm people or other objects in the room. Radiant heating tends to provide a more consistent and comfortable temperature, as it heats the surfaces in the room, not just the air.
Hydronic systems may be powered by various energy sources, such as heat pumps, boilers, or water heaters. Heat pumps transfer heat from one space to another, often utilizing the ground or outside air as a heat source or sink. Boilers and water heaters generate heat by burning fuel or using electricity, and then transfer the generated heat to the liquid medium running through the system’s tubing.
An essential aspect of designing an effective hydronic heating system is understanding heat loss within the space. Calculating heat loss takes into account various factors, such as insulation levels, window size and type, and building materials. This information helps determine the required wattage of the heating system, ensuring that it is capable of maintaining a comfortable temperature, even in the coldest conditions.
In summary, hydronic heating systems distribute heat through a combination of conduction, convection, and radiation using a liquid medium, such as water or a glycol mixture. Multiple energy sources, like heat pumps, boilers, and water heaters, can power these systems. By understanding heat distribution methods and addressing potential heat loss, efficient and comfortable heating can be achieved in both residential and commercial settings.
Hydronic Heating System Efficiency
Hydronic heating systems are known for their energy efficiency and ability to effectively maintain comfortable indoor temperatures. By circulating hot water or steam through pipes and radiators, these systems transfer heat throughout a space and provide consistent warmth. The energy efficiency of a hydronic heating system depends on its design, components, and operating temperature.
One significant factor that contributes to a hydronic heating system’s energy efficiency is the use of high-efficiency boilers. Modern boilers must have an AFUE rating of at least 80 percent, and high-efficiency models can achieve a rating of 90 to 98.5 percent. The higher the rating, the more efficient the equipment, and the lower the operational cost.
Another aspect to consider in hydronic heating system efficiency is the water temperature in the system. Lowering the water temperature can lead to energy savings, as the system will require less energy to heat the water and maintain the desired temperature. Temperature adjustments can be made to the system using controls and thermostats, allowing users to balance comfort and efficiency.
In addition, proper system design is essential for an energy-efficient hydronic heating system. Ensuring that the system is correctly sized, selecting the appropriate components, and optimizing the layout for heat distribution will all contribute to optimal performance and energy efficiency.
In conclusion, hydronic heating systems can offer excellent energy efficiency when designed and operated correctly. Utilizing high-efficiency boilers, adjusting water temperatures, and proper system design are all crucial elements in achieving an efficient and effective hydronic heating system.
Frequently Asked Questions
What are the pros and cons of hydronic heating vs forced air?
Hydronic heating offers several advantages over forced air systems. It is known for providing even, consistent warmth throughout spaces, with less noise and allergens circulating in the air. Additionally, hydronic systems are generally more energy-efficient, which can translate into cost savings in the long run. However, the installation process of hydronic heating systems can be more complex and expensive compared to forced air systems. Also, they do not provide a built-in solution for cooling, unlike forced air systems that can be used for both heating and cooling.
How do hydronic heating systems work?
A hydronic heating system works by circulating a hot liquid, typically water, although some systems use oil. The liquid is heated and circulated through pipes to distribute warmth in the house. The cooled liquid then returns to the heater, and the process repeats, creating a continuous heating cycle.
How much does it cost to install a hydronic heating system?
The cost of installing a hydronic heating system can vary significantly depending on factors such as the size of the house, the type of system chosen, and whether it requires new piping or integration with existing infrastructure. On average, the cost can range from $6,000 to $14,000 or more for larger homes or complex installations.
What are the different types of hydronic heating systems?
There are multiple types of hydronic heating systems, such as radiant floor heating, baseboard heating, and hydronic radiator systems. Moreover, various heat sources can be used, like boilers (gas, oil, or electric), solar panels, or heat pumps. Each type has its unique advantages and characteristics, suitable for specific applications or preferences.
Which hydronic heating system is the most energy-efficient?
The energy efficiency of a hydronic heating system depends on the heat source, distribution method, and system controls. In general, systems that use boilers with high-efficiency ratings, such as condensing boilers, tend to be more energy-efficient. Moreover, radiant floor heating systems can be more energy-efficient than baseboard or radiator systems, as they distribute warmth more uniformly throughout a space.
Are hydronic heating systems expensive to operate?
Operating costs for hydronic heating systems can vary, depending on factors like the energy source, system efficiency, and insulation of the home. While the initial investment might be higher than traditional forced-air systems, a well-designed hydronic system offers long-term cost savings through increased energy efficiency and lower maintenance requirements. Additionally, some energy sources, like natural gas or solar panels, can reduce operating costs further.
