Vault Toilet: A Comprehensive Guide to Eco-Friendly Restroom Solutions

Vault toilets offer a sustainable and environmentally friendly alternative to traditional flush toilets, particularly in locations where water and sewer systems are not available. They are waterless, non-flush toilets that store human waste in a large airtight underground container. Commonly found in campsites, construction sites, and other public places where water access is limited, vault toilets provide a convenient and cost-effective solution to waste management.

Designed with user comfort and odor control in mind, vault toilets consist of a toilet seat or bowl mounted over an underground storage tank. By utilizing a well-sealed container, these toilets help to minimize odors, reduce the spread of diseases, and protect the surrounding environment from contamination. The maintenance and cleanliness of these toilets depend on regular servicing where waste is pumped out of the container for safe disposal or treatment.

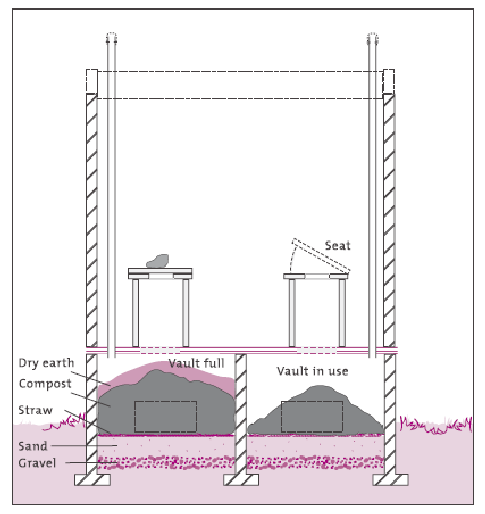

Vault toilets come in various designs and capacities, with some featuring double vaults that allow for easier waste management and maintenance. However, they are not without drawbacks, such as challenging odor control and potential user accessibility issues. Despite this, they remain a popular choice for off-grid locations and remote public facilities.

v1 Copy

Key Takeaways

  • Vault toilets are waterless, non-flush alternatives to traditional toilets, found in areas with limited water access.
  • They store human waste in an airtight underground container, minimizing odors and environmental impact.
  • Vault toilets vary in design and capacity, with challenges in odor control and accessibility to be considered.

Understanding Vault Toilets

Note: This post may contain affiliate links. This means that at no cost to you, we may receive a small commission for made purchases.

Vault toilets are an eco-friendly and efficient solution for areas where water is scarce or not readily available. These waterless, non-flush toilets store human waste in a large, airtight underground container called a vault. They are commonly installed in parks, recreational spots, campgrounds, and other remote public areas where traditional flushing toilets are not feasible due to water limitations or lack of plumbing infrastructure.

The design of vault toilets sets them apart from standard pit toilets. While pit toilets simply have a hole in the ground for waste disposal, vault toilets feature a sealed waste tank that prevents groundwater contamination and minimizes odors. This underground tank, which typically ranges from 750 to 13,000 gallons in size, needs to be pumped and emptied regularly to maintain proper function.

Being waterless, vault toilets rely on natural ventilation to minimize odors while maintaining a clean and hygienic environment. The structure of the toilet building often includes vents that allow for air circulation and odor control. In addition, some vault toilets are equipped with accessibility features like grab bars and support rails to accommodate users with limited mobility.

The benefits of using vault toilets include their low environmental impact and cost-effectiveness. Since they do not require water for flushing, they conserve water resources and simplify the installation process. Moreover, because vault toilets do not rely on plumbing, they can be placed in remote locations where traditional sewer systems may not be feasible.

Maintenance is crucial for ensuring the longevity and cleanliness of vault toilets. Regular checks should be conducted to verify that the ventilation systems are functioning properly, and the waste tank must be pumped out periodically to prevent overflow or leakage. Additionally, users should responsibly dispose of sanitary items in provided trash receptacles and avoid introducing harmful substances into the waste tank to ensure optimal performance of the vault toilet system.

In conclusion, vault toilets offer an environmentally friendly and practical alternative to traditional water-using toilets, particularly in remote locations where water resources are limited. With proper maintenance and responsible use, these waterless toilets provide a sustainable and cost-effective solution for waste management in parks, campgrounds, and other public spaces.

v3

Varieties of Vault Toilets

Vault toilets are an environmentally friendly and water-conserving option for remote locations. There are several different types of vault toilets, including portable vault toilets, composting toilets, non-flush toilets, and bag toilets. In this section, we will explore these various options to help you better understand their features and applications.

Portable Vault Toilets

Portable vault toilets, also known as porta potties, are a popular choice for outdoor events and construction sites. They are lightweight, easily transportable, and self-contained, making them ideal for locations without access to traditional plumbing. These toilets consist of a waste storage tank with a built-in deodorizing agent to help control odor. Due to their design, portable vault toilets require regular servicing and cleaning to maintain sanitary conditions.

Composting Toilets

Composting toilets are an eco-friendly alternative to traditional toilets. They use the natural process of decomposition to break down waste into nutrient-rich compost. Instead of flushing waste with water, composting toilets rely on aerobic bacteria and other microorganisms to decompose the waste inside a container. The resulting compost can be safely used as a soil amendment, reducing the need for chemical fertilizers. Composting toilets are low-maintenance, require no water, and produce minimal odor when properly managed.

Non-flush Toilets

Non-flush toilets are vault toilets that do not use water for waste disposal. These toilets are commonly installed in campgrounds, parks, and other locations where water is scarce. Non-flush toilets often feature a large underground storage container or vault to store waste. The waste is then periodically removed and treated off-site. One notable advantage of non-flush toilets is their minimal impact on water resources, making them an environmentally friendly option. However, they require regular maintenance and cleaning to keep them sanitary and odor-free.

Bag Toilets

Bag toilets are a simple and portable waste disposal solution ideal for emergency situations or remote camping. They consist of a seat with a sturdy bag attached beneath it to collect waste. The waste is then sealed in the bag and disposed of accordingly. Some bag toilets use biodegradable bags, making them an eco-friendly choice. While they may not be the most comfortable or convenient option, bag toilets provide a temporary solution for locations without access to other toilet facilities.

v7

Design and Construction

Standard Components

Vault toilets consist of several standard components that ensure their functionality and durability. The main element is a vault or pit located underneath the restroom, where the waste is collected. This vault can be part of a single or double vault system. Access to the vault is necessary for servicing and emptying the waste when needed.

On top of the vault, a restroom structure with walls and a roof is built, providing privacy and shelter for users. The toilet itself is typically a waterless, non-flush type that directly deposits waste into the vault below.

Ventilation System

A crucial aspect of vault toilet design is the ventilation system. Proper ventilation helps control odors and keeps the environment inside the restroom pleasant for users. Typically, a vent pipe connects the vault to the outside, allowing air circulation and the escape of unpleasant odors. The vent pipe should be placed in a way that takes advantage of natural air currents so that the odors are carried away from the restroom.

Material Used

Various materials can be used for constructing vault toilets, each offering different advantages and durability. Wooden frames are a common choice for the walls of the restroom due to their cost-effectiveness and ease of construction. However, wooden frames may be less durable than other materials and require proper maintenance to avoid rot and other issues.

Reinforced concrete is another option for the walls and the vault itself. Concrete walls offer increased durability and weather resistance. The vaults made from concrete are highly robust and long-lasting.

For the vaults, cross-linked polyethylene is the most widely-used material. This type of plastic is highly durable, lightweight, and resistant to chemicals, making it an ideal choice for waste containment. The durability and versatility of cross-linked polyethylene have made it a popular choice for constructing vault systems in modern vault toilets.

v6

Maintenance and Cleanliness

Vault toilets are waterless, non-flush toilets principally designed for areas with limited or no access to water. Their main advantage is the significant reduction in water usage and minimal environmental pollution. However, proper maintenance and cleanliness are crucial to ensure they continue to function effectively and maintain a hygienic environment.

Regular cleaning is vital for vault toilets as waste is stored in an underground container, or vault, until it is removed. The frequency of cleaning depends on the level of usage, but professional servicing should be conducted regularly to prevent unpleasant odors and ensure proper sanitation 1. Companies specializing in vault toilet maintenance will typically pump out the waste using a vacuum truck and dispose of it according to local regulations.

Alongside regular professional servicing, routine cleaning and sanitation tasks should be performed by the site managers or maintenance staff. These tasks may include sweeping and mopping the floors, wiping down walls and surfaces, applying disinfectants, and restocking toilet paper and hand sanitizer. Proper ventilation within the vault toilet is essential, as it helps to minimize odors and promote airflow, making the toilet more comfortable and hygienic for users 2.

To prevent vandalism, graffiti, and litter, it’s important to make sure the surrounding area is clean and well-maintained. Providing trash receptacles near the vault toilet can discourage users from discarding waste improperly, helping to maintain a tidy environment for everyone.

In summary, regular maintenance, cleaning, and sanitation of vault toilets are essential to ensure their long-term usability and maintain a clean, comfortable environment for users. Following these practices will contribute to the overall effectiveness and sustainability of these waterless toilets, particularly in remote locations.

v8

Environment and Safety Considerations

Vault toilets offer several benefits to the environment and can be safe alternatives to conventional flushing toilets. Due to their waterless nature, they help conserve water resources and are especially useful in areas with limited water availability, such as parks, campgrounds, and other public spaces 1.

The airtight underground containers used in vault toilets help minimize the risk of environmental pollution. By securely storing human waste, the potential for groundwater contamination is reduced, ensuring the safety of nearby water sources 2. Moreover, the absence of sewage connections and external plumbing lowers the possibility of leaks and spills, further preserving the natural environment.

In terms of safety, vault toilets are designed with user comfort in mind. Many include features like toilet seats or squatting pans, promoting ease of use and accessibility 3. Additionally, their construction typically includes a ventilation system to manage odors and regulate the flow of air, providing a more pleasant experience for users.

While vault toilets are generally considered environmentally friendly, it is essential to keep regular maintenance practices, such as regularly emptying the waste tanks 4. This ensures proper functioning and prevents potential problems such as overflowing, which could pose a risk to both the environment and users.

In conclusion, vault toilets present a viable option for addressing waste management concerns, particularly in areas with limited water resources. Their design and functionality prioritize environmental safety while providing a user-friendly experience.

v4

Usability and Accessibility

RV and Camping Use

Vault toilets are an excellent solution for RV and camping use due to their waterless and non-flush nature, making them perfect for areas with limited water resources or remote locations. Campgrounds and RV parks often install these toilets, providing campers and RV enthusiasts with a reliable and environmentally friendly waste disposal option.

Public and Recreational Spaces

In public and recreational spaces like parks and campgrounds, vault toilets offer a convenient and accessible solution for waste management. Their simple design and waterless operation make them ideal for places that lack infrastructures such as water and sewage systems. Furthermore, their large underground storage tanks can hold between 750 and 13,000 gallons of waste, which allows for infrequent servicing and reduced maintenance costs.

Small Spaces

Vault toilets are also suitable for small spaces, as they do not require extensive plumbing or additional structures to function properly. Since they are mostly self-contained, vault toilets can be installed in confined areas, such as trailheads or parking lots in public spots.

Regarding ADA regulations, public facilities should always strive to provide accessible restroom options for individuals with disabilities. These guidelines apply to vault toilet installations in public and recreational spaces, ensuring that all users can comfortably use the facilities regardless of physical limitations. Adaptations such as wheelchair-accessible stalls, properly placed grab bars, and appropriate doorway widths are essential for compliance and user satisfaction.

Best Solar Powered Pond Pump

Installation and Emptying Process

Vault toilets are an effective solution for providing restrooms in locations where water supply and infrastructure are limited. The installation process typically starts with digging a hole in the ground to create a large underground storage area or vault. This vault is designed to securely store excreta and prevent contamination of the surrounding environment.

Once the hole is dug, a concrete slab or heavy-duty liner is placed at the bottom to form the base of the vault. The walls of the vault can be made of reinforced concrete, brick, or other sturdy materials. It is essential to ensure that the vault is watertight and airtight to minimize odors and prevent leakage of waste material. The top part of the structure, or booth, is then built above the vault, providing users with a private and clean space for using the toilet.

Vault toilet maintenance is crucial to ensure a sanitary and odor-free environment. The frequency of emptying the vault depends on the level of usage and storage capacity. Most vault toilets require emptying every week or every two weeks to prevent overflow and maintain a hygienic atmosphere. An adequately designed vault toilet also avoids the need for complicated underground pipes or additional infrastructure for wastewater management.

Emptying the vault is typically carried out by the municipal council or a specialized service provider. A vacuum tanker truck is used to extract the contents of the vault, and the waste material is transported to a designated disposal site or treatment facility. This process helps ensure that the surrounding environment remains clean and uncontaminated.

In summary, vault toilets provide a practical and eco-friendly alternative to traditional toilets, especially in remote areas where water resources are scarce. With proper installation and regular emptying of the underground tank, these facilities can offer a sanitary and healthy option for public use.

How Long Does A Septic Inspection Take?

Managing Odors and Waste

Vault toilets are designed to manage waste and odors in remote and eco-sensitive locations. They primarily rely on a sealed vault that stores the waste, ensuring minimal environmental impact. However, managing odors and waste in these toilets requires a consistent approach with regular maintenance and proper ventilation.

For efficient odor control, vault toilets use various venting techniques to prevent unpleasant smells. Most commonly, they are made from concrete and have powerful vents to hold and prevent odors from occurring. These vents also play an essential role during routine maintenance and waste discharge. Some vault toilets incorporate a flame at the vent to burn odors out, eliminating the foul odor caused by nitrogen gas and hydrogen sulphide.

In addition to venting systems, vault toilets often use long underground pipes to transport waste to remote locations away from the toilet. This method is mainly employed for permanent vault toilets and helps minimize the odor in the surrounding area.

Apart from venting, waste management in vault toilets relies on periodic waste removal and cleaning. Depending on the usage level and waste capacity, which generally ranges from 750 to 1,000 gallons, these toilets need to be serviced by specialized waste management companies to maintain functionality and hygiene.

Furthermore, some vault toilets make use of evaporator systems that employ mechanical ventilation to control odors and significantly reduce waste volume, decreasing the frequency of pumping and cleaning. These systems can accommodate multiple toilets and sinks, proving to be an efficient waste management solution.

In conclusion, managing odors and waste in vault toilets involves a combination of proper venting techniques, regular maintenance, and innovative systems designed to minimize the environmental impact and provide a comfortable experience for users.

Cesspool vs Septic Tank

Pros and Cons of Vault Toilets

Vault toilets are a type of waterless toilet commonly found in public areas, particularly in remote locations where access to water is limited. They are designed to minimize water usage and their environmental impact. In this section, we’ll go over the advantages and disadvantages of using vault toilets.

Pros:

  • Cost-effective: Vault toilets are considered to be a more economical option compared to traditional flushing toilets. As they don’t require water or sewage connections, their installation and maintenance costs are lower. They can also reduce water expenses, as no water is used during operation.
  • Environmentally friendly: Vault toilets produce very little environmental pollution due to their lack of water usage. This can be beneficial for preserving local ecosystems and conserving valuable water resources.
  • Energy-efficient: These toilets use minimal energy, requiring only the energy needed to transport waste for disposal, making them an energy-efficient choice.
  • ADA compliant: Vault toilets typically meet all ADA regulations for user comfort and accessibility, making them a suitable option for public spaces.

Cons:

  • Odor: Although Vault toilets are generally odorless, they may emit unpleasant smells during periods when strong wind is unavailable for proper ventilation.
  • Maintenance: Vault toilets require regular cleaning and maintenance, depending on their usage level. This includes pumping out the waste, which can be a time-consuming and potentially expensive process.
  • Limited usability: Vault toilets are not suitable for all locations or situations, as they are designed for remote areas without water or sewage connections. Therefore, they may not be ideal for residential or urban settings.

In summary, vault toilets provide a cost-effective, environmentally friendly, and energy-efficient solution for public restrooms in remote locations. However, they may emit unpleasant odors and require regular maintenance.

How Much Does It Cost To Have A Septic Inspection Performed?

Frequently Asked Questions

How do vault toilets work?

Vault toilets are non-flush, waterless toilets that consist of an underground container (vault) made of concrete, fiberglass, or steel. The toilet is typically made of durable materials such as stainless steel or molded plastic and features a toilet seat and a ventilation pipe to help control odor. The waste is stored in the airtight underground container until it is removed for proper disposal or treatment.

How to build a DIY vault toilet?

Building a DIY vault toilet requires careful planning and consideration of local laws and regulations. First, determine the size and material for the underground vault and excavation depth. Then, procure a suitable toilet fixture and ventilation system. Ensure proper installation of the vault and airtight sealing to prevent leakage and contamination. Note that professional assistance is recommended, as mistakes could lead to environmental hazards or legal issues.

What chemicals are used in vault toilets?

Vault toilets often use enzymes and bacteria to help break down the waste and reduce odors. Other chemicals, such as lye or lime, may also be used to keep the waste dry and further control smells. It is essential to choose environmentally friendly and biodegradable chemicals to minimize any negative environmental impact.

How to clean and maintain a vault toilet?

Cleaning and maintaining a vault toilet involve periodic inspection of the toilet structure, proper waste management, and addressing any issues with the ventilation system. Cleaning crews must regularly clean the toilet seat, surrounding area, and ventilation system using industrial-grade cleaners and disinfectants. Waste removal must be carried out by professionals to ensure proper treatment and disposal, and the frequency will depend on the usage level of the toilet.

What is the difference between a pit toilet and a vault toilet?

A pit toilet is a basic type of toilet where waste falls directly into a hole in the ground. It has minimal or no odor control and is not designed for long-term use. On the other hand, a vault toilet stores waste in an airtight underground container, which provides better odor control and allows for more extended use before requiring emptying. Vault toilets are more structurally sophisticated and typically found in public areas like parks, campgrounds, and remote public spots.

How are vault toilets different from outhouses?

Outhouses are simple, standalone structures that cover a deep hole in the ground where the waste is deposited. They often lack any sort of odor control or waste management system. Vault toilets, however, feature an underground container for waste storage, accompanied by a ventilation pipe for odor mitigation. The structural design of vault toilets is more advanced, and they are built for longer-term use and regular maintenance.
